Loadtek Economy Cylinder Wall Racks

SKU: N/A Categories: COSHH Storage, Cylinder Storage & Handling Brands: Loadtek

Brands: Loadtek

In stock

Estimated Lead Time: 10 – 15 Working Days (Stainless Steel – Extra 10 Days)

From £52.00 Ex. VAT

Configuration

Cylinder Diameter (mm)

Material

Clear

Bulk Savings	Quantity	Price Per Unit
2.5%	2 - 3	2.5% £50.70
5%	4 - 6	5% £49.40
7.5%	7 - 10	7.5% £48.10
10%	11 - 15	10% £46.80
12.5%	16 - 21	12.5% £45.50
15%	22 +	15% £44.20

Buy more, save more - unlock lower prices on bulk orders.

The HSE Store Advantage

✓
Market-Leading Value:
Price beating guarantee on all ranges
✓
Verified Quality:
5-Star rated service and technical support
✓
Direct UK Origin:
Over 95% of our products are British manufactured
✓
Bespoke Capability:
Custom configurations and project solutions
✓
Free Delivery:
Complimentary UK mainland delivery

Description

Secure and Space-Saving Gas Cylinder Storage

Unsecured gas cylinders pose a significant health and safety hazard in any industrial, medical, or workshop environment. The Loadtek Economy Cylinder Wall Racks offer a highly effective, space-saving solution to keep your volatile canisters upright and secure. Proudly made in Britain, these racks seamlessly integrate into your facility to prevent accidental tipping and ensure full health and safety compliance. Options are available to safely house 1, 2, or 3 cylinders, accommodating diameters of either 100-180mm or 140-270mm.

Secure wall storage designed to hold 1, 2, or 3 gas cylinders safely.
Proudly made in Britain from robust 3mm sheet steel.
Supplied complete with heavy-duty zinc-plated steel link retention chains.
Available in a Light Grey epoxy finish or premium 304-grade Stainless Steel.
Engineered to suit cylinder diameter ranges of 100-180mm or 140-270mm.

Robust Construction for Maximum Workplace Safety

When it comes to industrial storage, durability is non-negotiable. These wall racks are manufactured from heavy-duty 3mm sheet steel, providing exceptional structural integrity. To guarantee your cylinders remain firmly in place, each rack is supplied complete with high-quality, zinc-plated steel link retention chains. This reliable chaining system allows for quick access when swapping out bottles, while providing peace of mind that your cylinders are securely locked back into position.

Versatile Finishes and Straightforward Fitment

Depending on your environmental requirements, you can select the perfect finish for your workspace. Choose between a tough Light Grey epoxy coating (to BS00A05) for standard industrial use, or upgrade to the 304-grade Stainless Steel option for ultimate corrosion resistance in washdown or sterile areas. For straightforward installation, the units feature pre-drilled wall fixing holes (please note, the wall fixings themselves are not supplied). As a critical safety note, these wall racks must be fixed to your wall at a height equal to at least two-thirds of the cylinder’s total height.

Why Choose HSE Store?

At HSE Store, we understand the fast-paced demands of your business. That is why we offer free UK delivery on all orders over £50, backed by our track record of five-star customer reviews. Need something highly specific? We can quote for almost anything—whether you need large bulk quantities, custom sizing, or bespoke corporate colours.

Technical Information

Description	Overall W x D (mm)	Cylinder dia (mm)	Weight (Kg)	Light Grey Epoxy Order Ref	Stainless Steel Order Ref

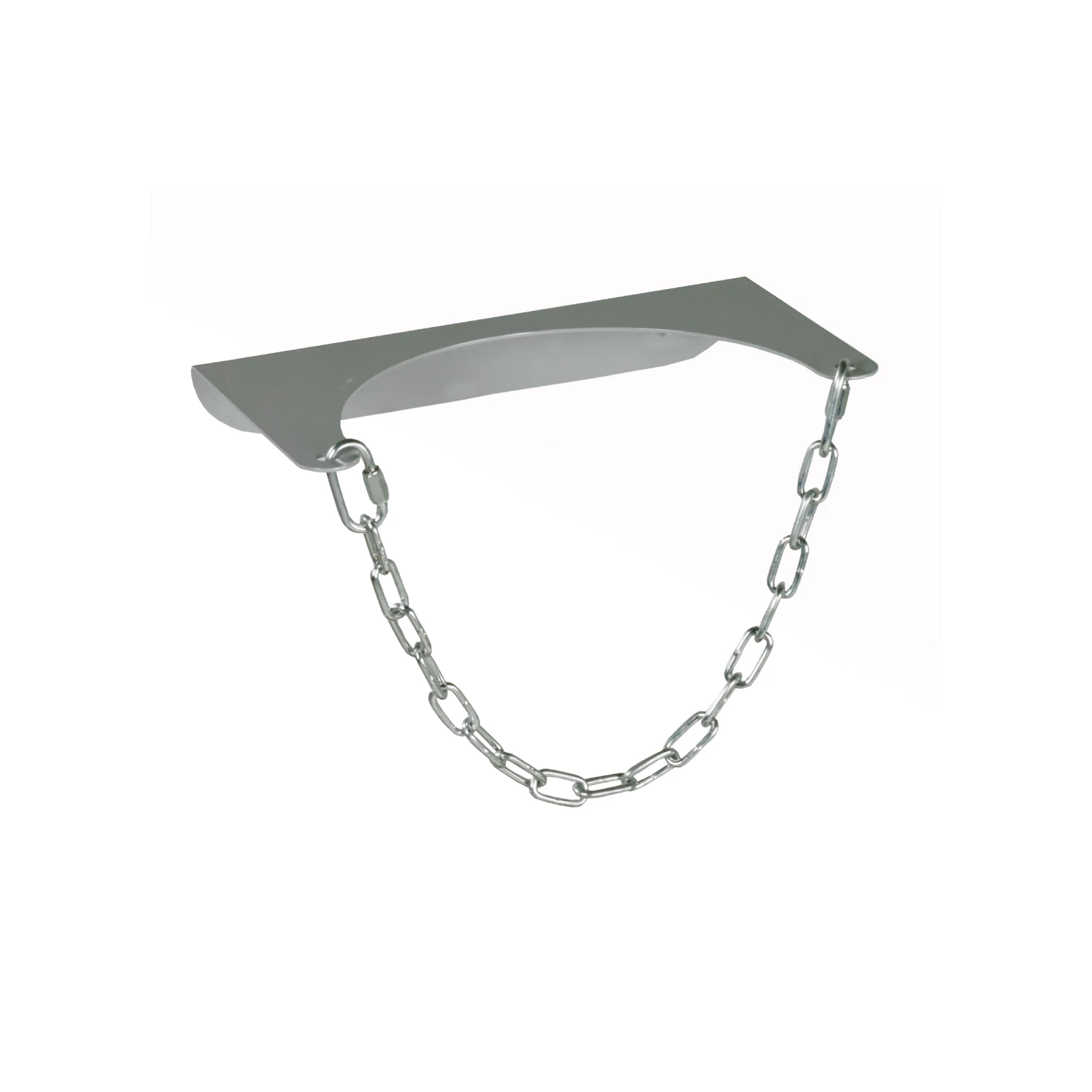

1 Cylinder Wall Rack	245 x 140	100 – 180	1	SC204	SC204SS

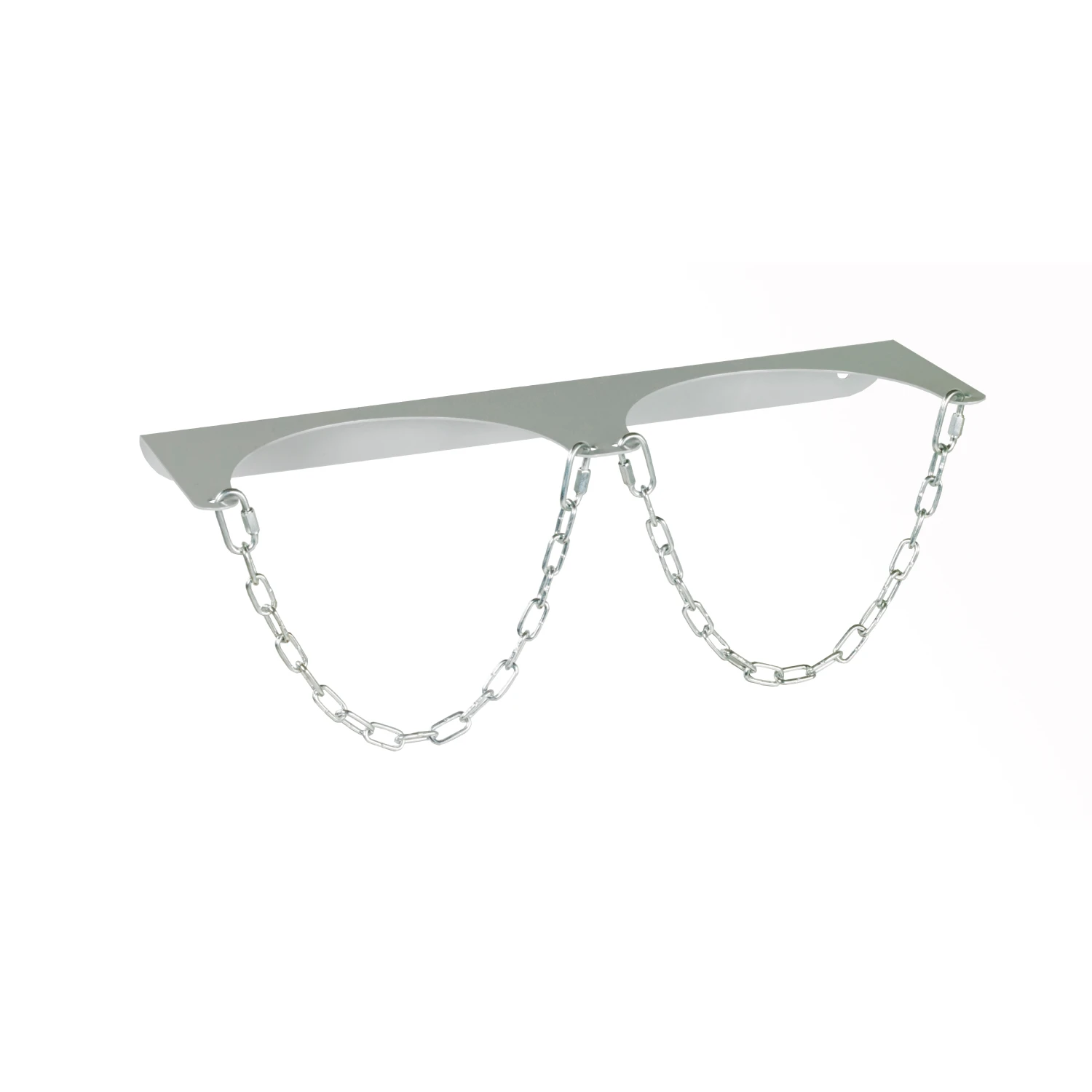

2 Cylinder Wall Rack	460 x 140	100 – 180	2	SC205	SC205SS

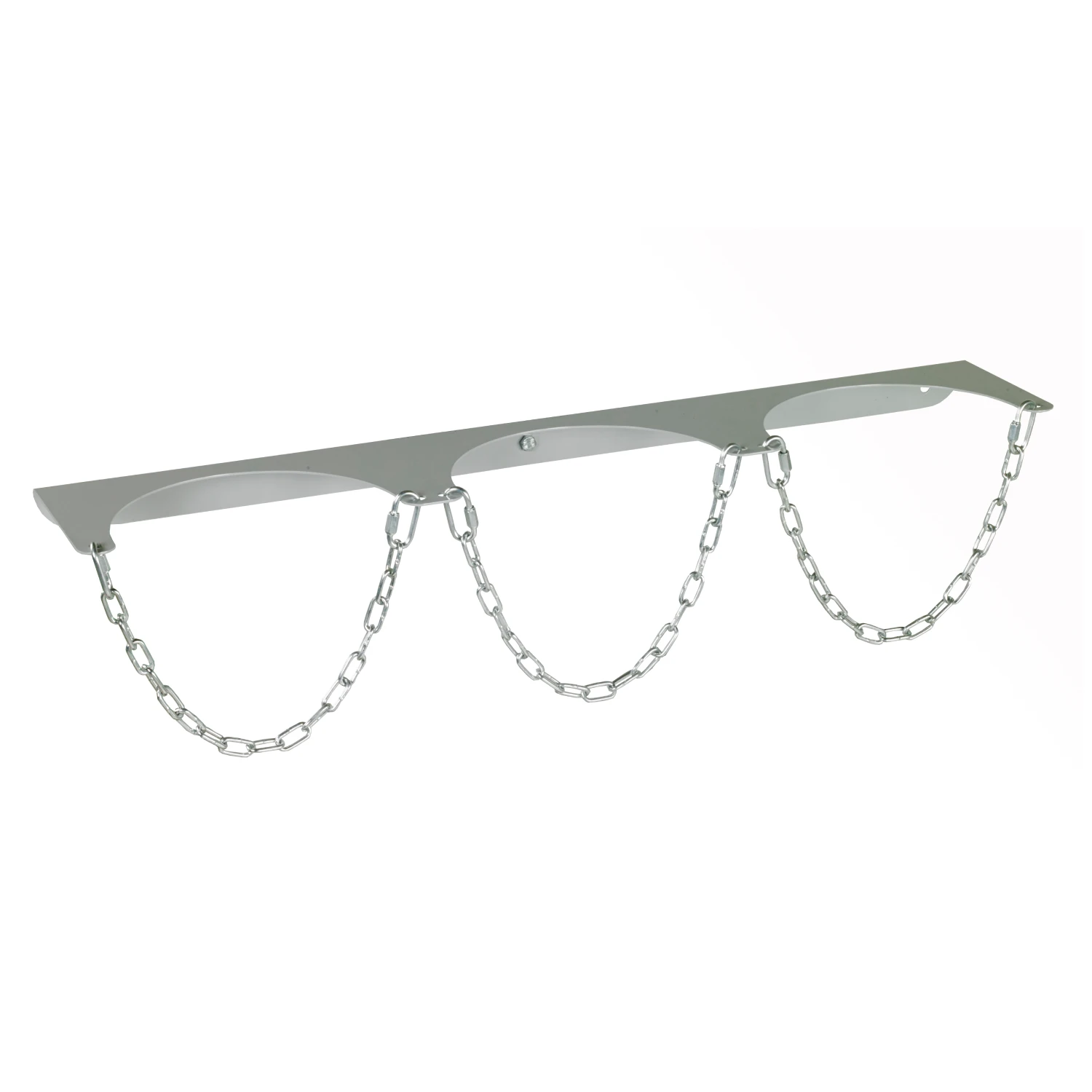

3 Cylinder Wall Rack	675 x 140	100 – 180	3	SC206	SC206SS
1 Cylinder Wall Rack	340 x 210	140 – 270	2	SC207	SC207SS
2 Cylinder Wall Rack	660 x 210	140 – 270	3	SC208	SC208SS
3 Cylinder Wall Rack	980 x 210	140 – 270	4	SC209	SC209SS

Additional information

Colour	Silver
Country Of Manufacture	UK
Warranty	12 Months Manufacturer

FAQ's

Question	Technical Answer
What does COSHH stand for and why do I need a cabinet?	COSHH stands for the Control of Substances Hazardous to Health. You need a specialised cabinet to safely contain corrosive, toxic, or irritant substances, ensuring compliance with UK health and safety laws.
What is a sump and what capacity should it have?	A sump is a leak-proof base designed to catch spills. UK regulations require the sump to hold 110% of the largest container or 10% of the total volume stored, whichever is greater.
What do the different cabinet colours mean?	Yellow: Flammables White: Acids and Alkalis Red: Flammables or Chemicals Green: Pesticides & Agrochemicals Grey: General Hazardous
Can I store flammables and acids in the same cabinet?	NO. You must segregate incompatible substances. Storing flammables with corrosive acids can lead to dangerous chemical reactions or compromise the cabinet’s integrity.
How much flammable liquid can I store?	DSEAR regulations recommend a maximum of 50 litres for highly flammable liquids (flashpoint < 23°C) and up to 250 litres for other flammable liquids within a workroom.
Are these COSHH cabinets fire-rated?	Our QMP Steel units are Reaction to Fire EN 13501-1 certified and have a performance of A2, s2, d0.
Do pesticide cabinets require ventilation?	Yes. Our pesticide cabinets feature louvred doors to allow for natural ventilation, preventing the dangerous build-up of vapours and fumes.
Can COSHH cabinets be used outdoors?	Steel cabinets are for indoor use. For outdoors, we recommend our Hazardous Bins or Chests. We can also provide quotes for galvanised cabinets.
Should the cabinet be bolted to the floor?	Highly Recommended. Floor-bolting tall cabinets prevents tipping, especially when heavy liquid containers are stored on upper shelves.
Are the shelves adjustable?	Yes. Shelves can be moved in 25mm increments to accommodate various container heights while maintaining structural safety.
Manufacturing & Delivery	All HSE Store COSHH cabinets are British-made and delivered fully assembled to ensure they meet safety integrity standards from day one.
Regulations (DSEAR)	Our cabinets help you meet DSEAR (Dangerous Substances and Explosive Atmospheres Regulations) requirements for fire-resistant, secure storage.
