Description

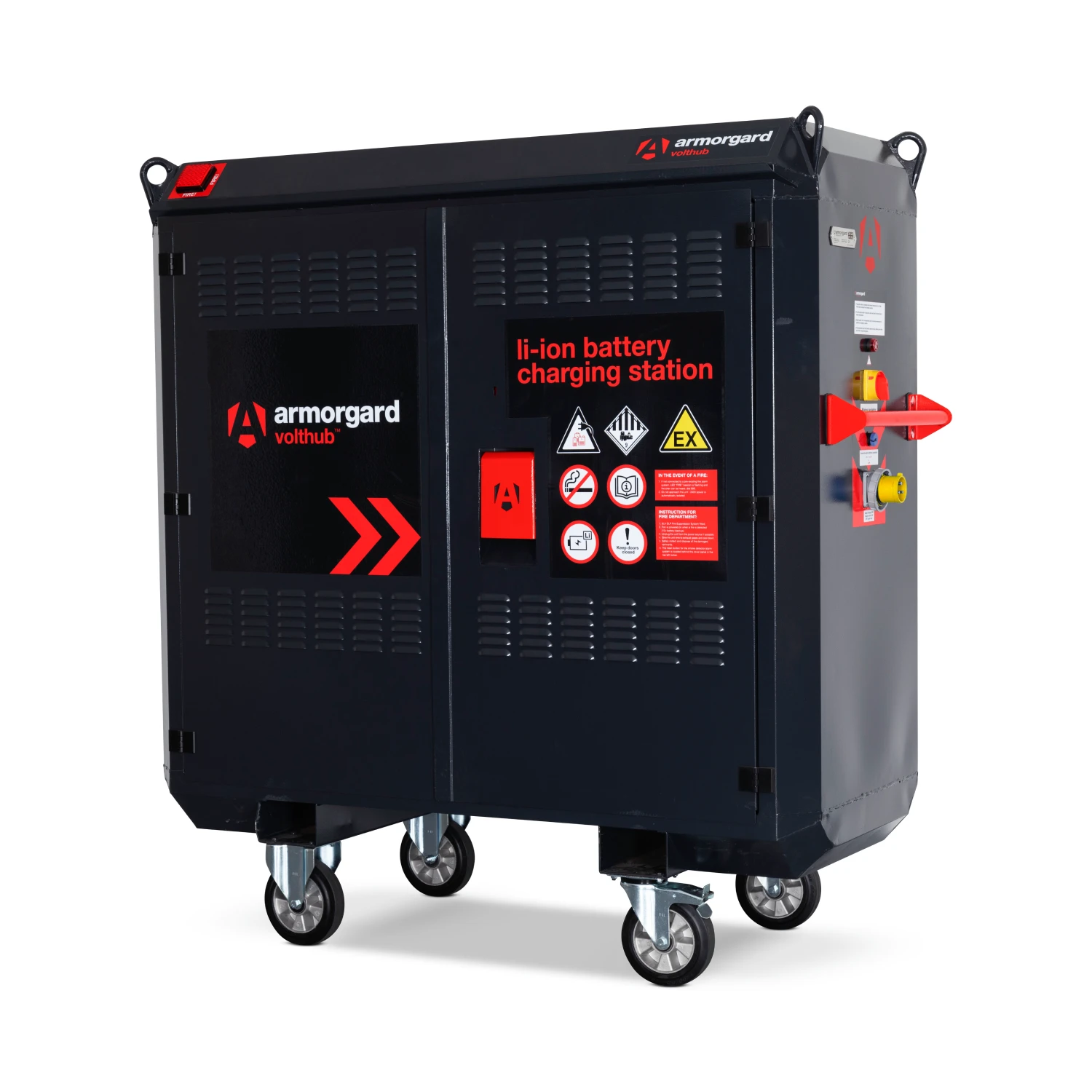

Lithium-ion batteries present a unique and highly dangerous fire risk on modern construction sites, where standard fire extinguishers simply are not effective. The Armorgard VoltHub is a pioneering, highly secure solution specifically designed to safely charge and store Li-Ion batteries both indoors and outdoors. Whether you manage a large-scale development or a specialist contracting firm, this unit provides ultimate peace of mind by actively mitigating the risks associated with thermal runaway.

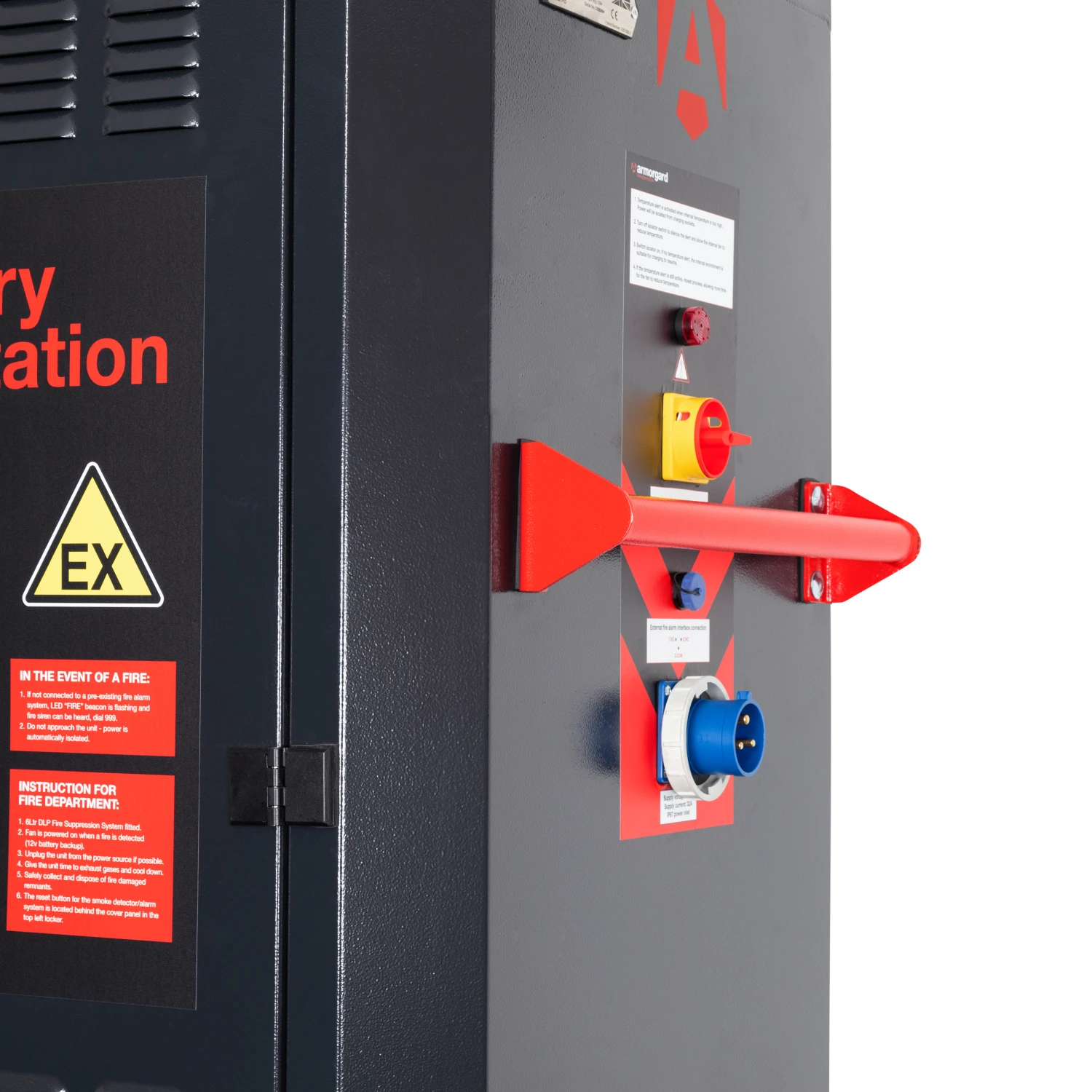

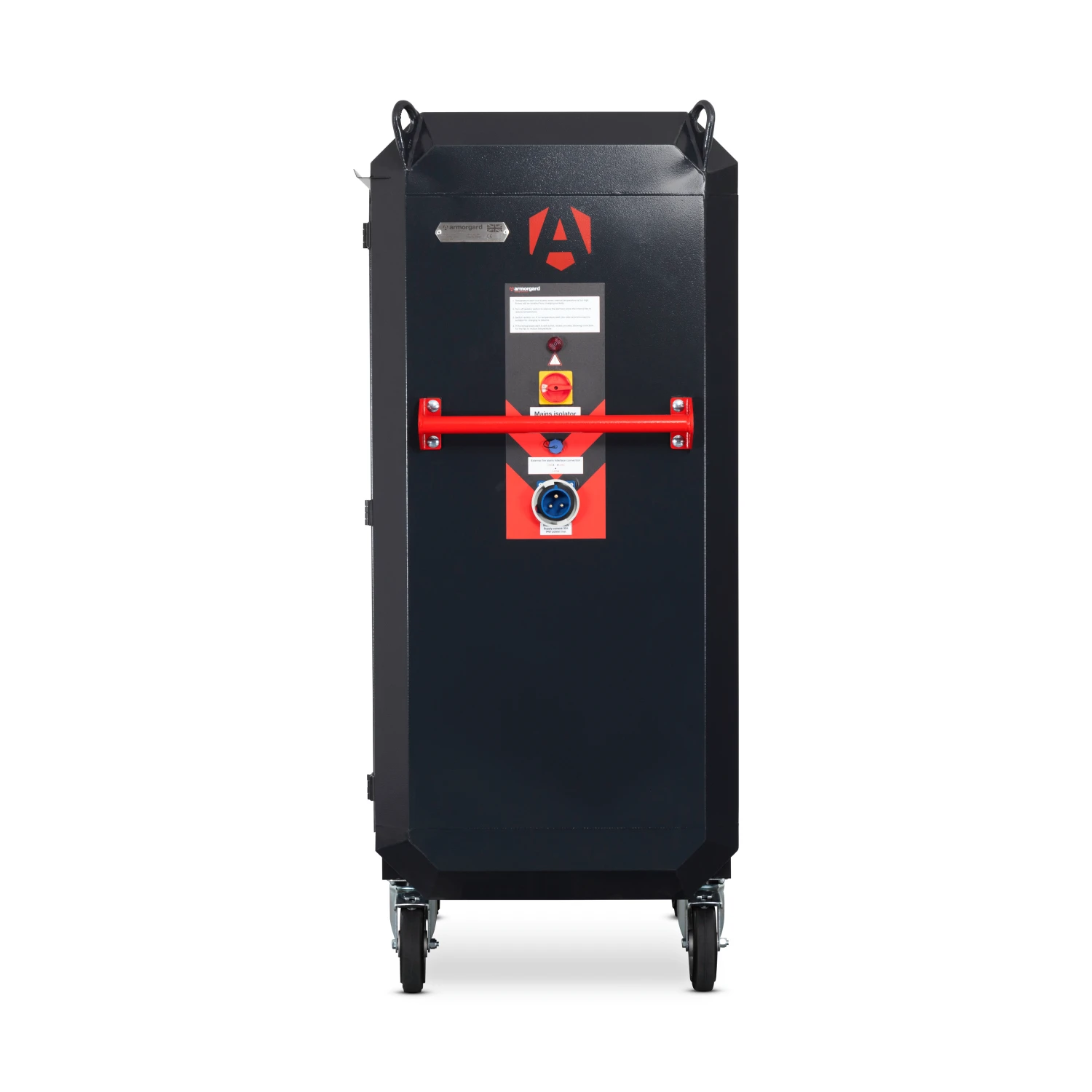

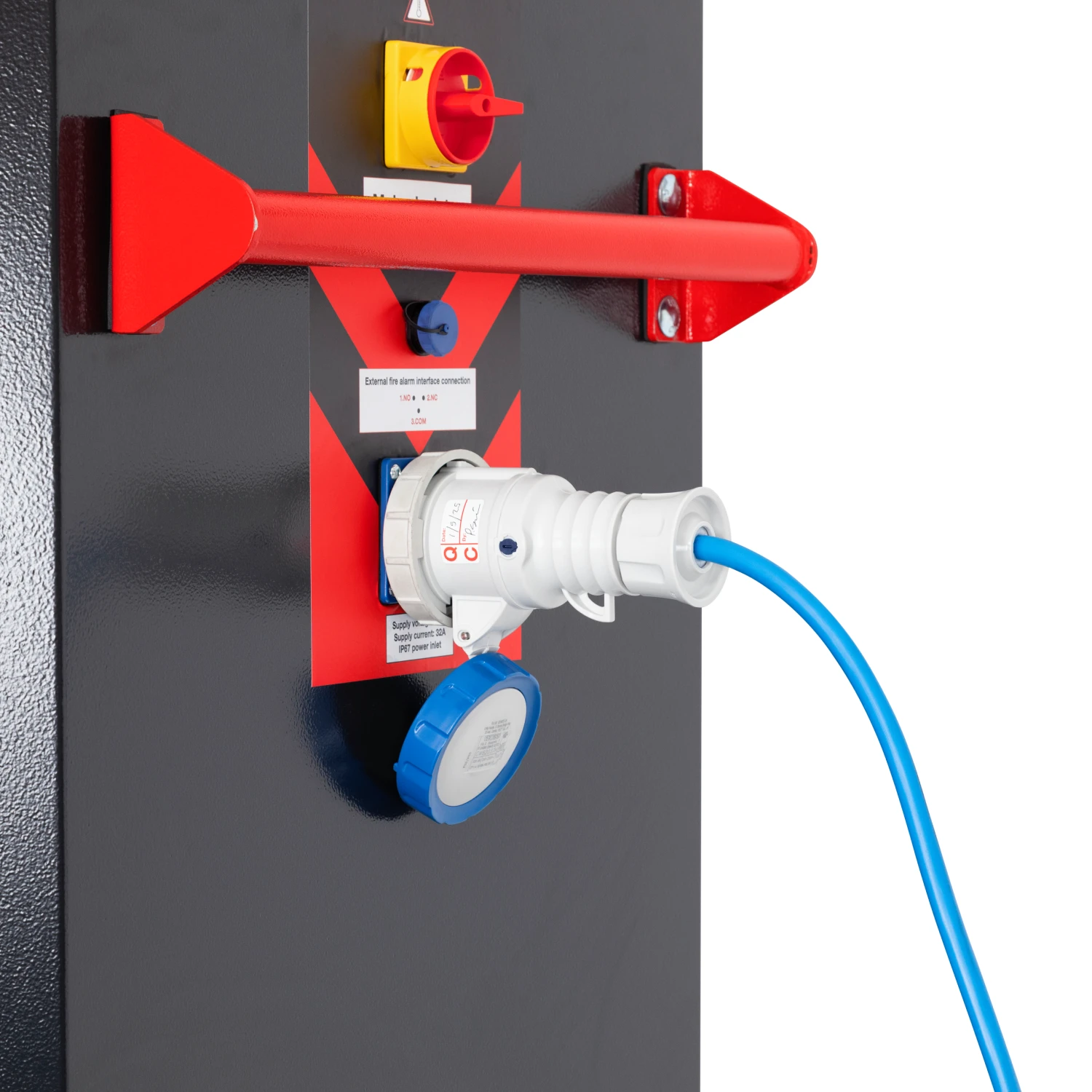

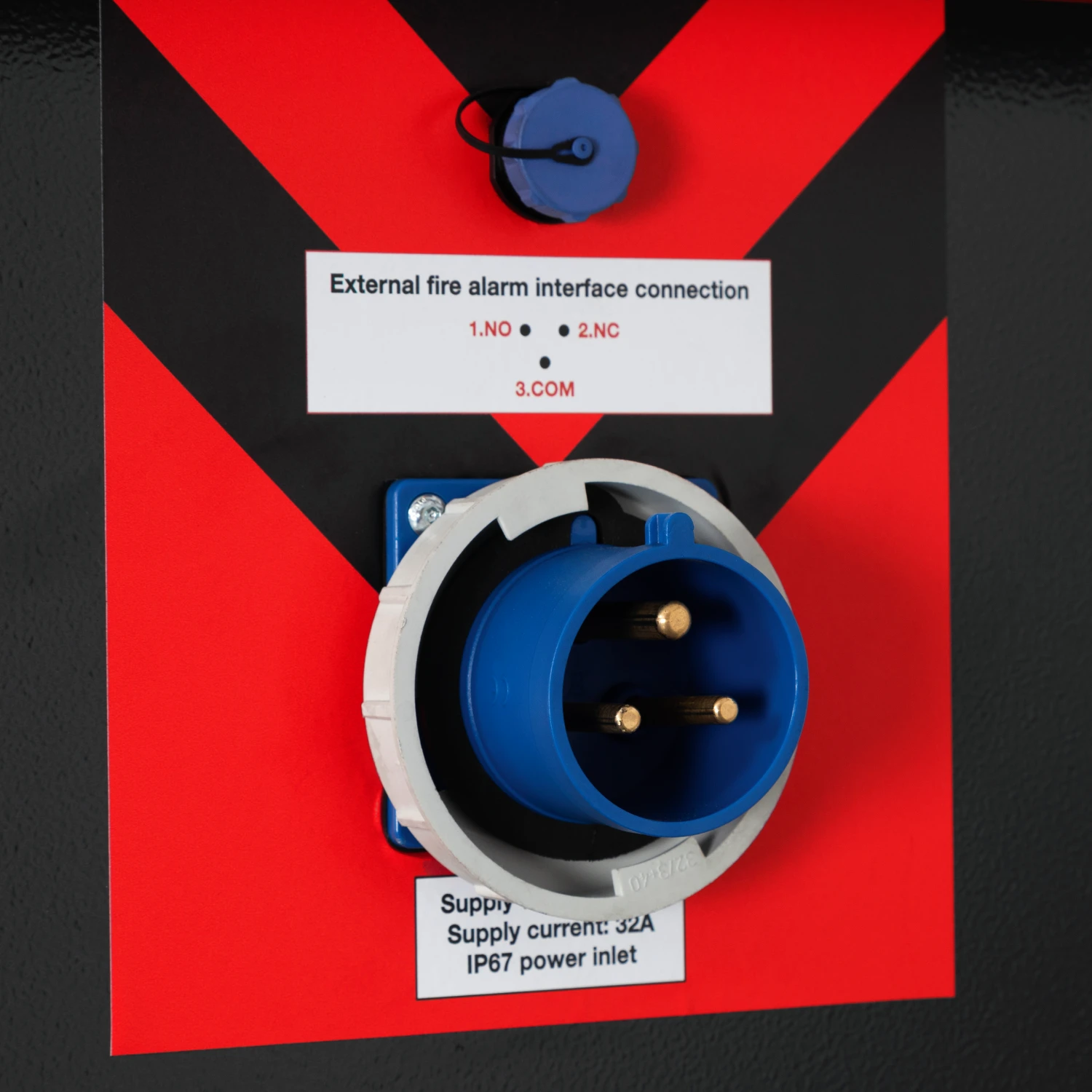

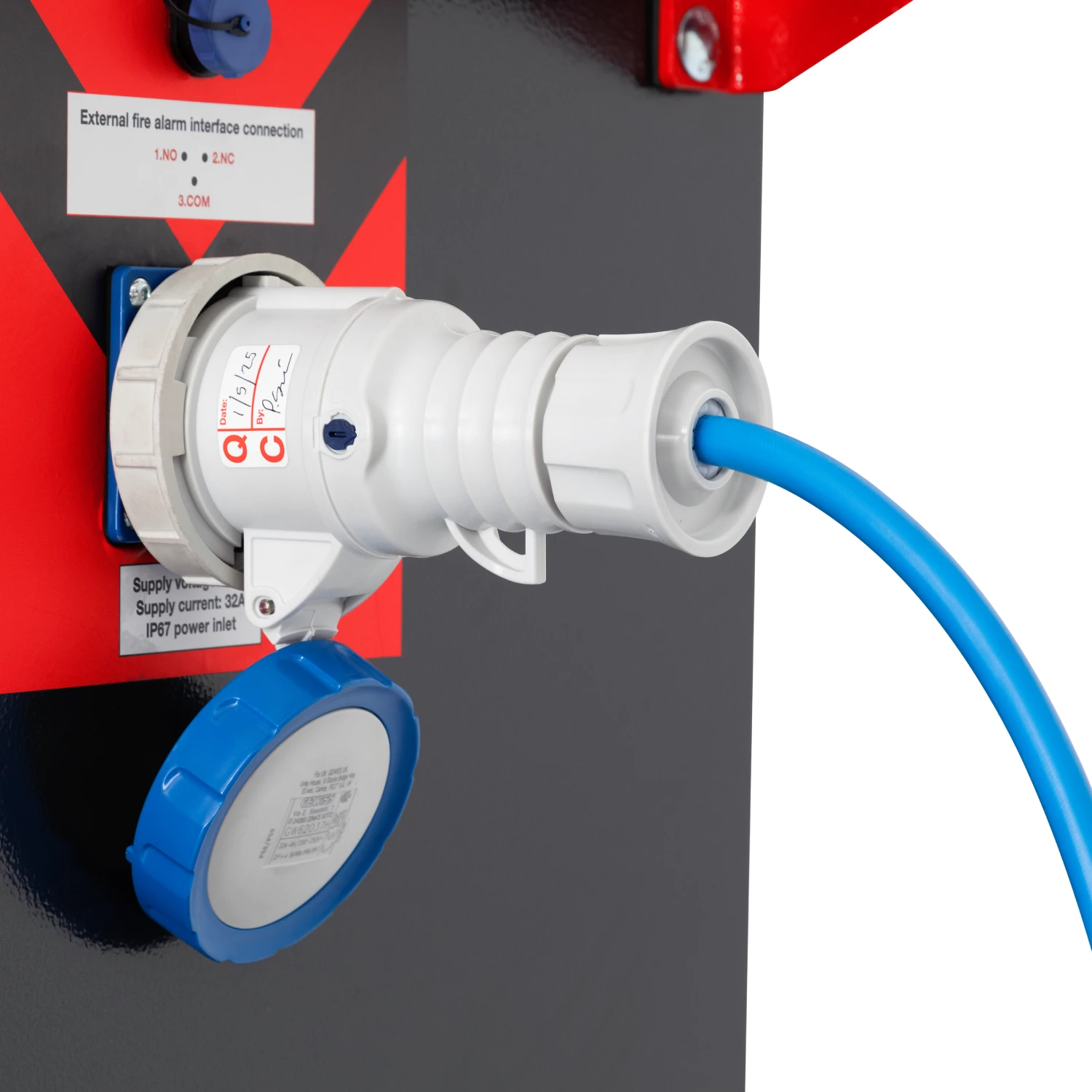

• Main Power Supply: The unit connects to an external power supply via a 32A IP67-rated power inlet located on the side of the cabinet.

• Voltage Options: The VoltHub is available in two distinct variations depending on your site requirements: a 110V model (VH16-110) or a 240V model (VH16-240).

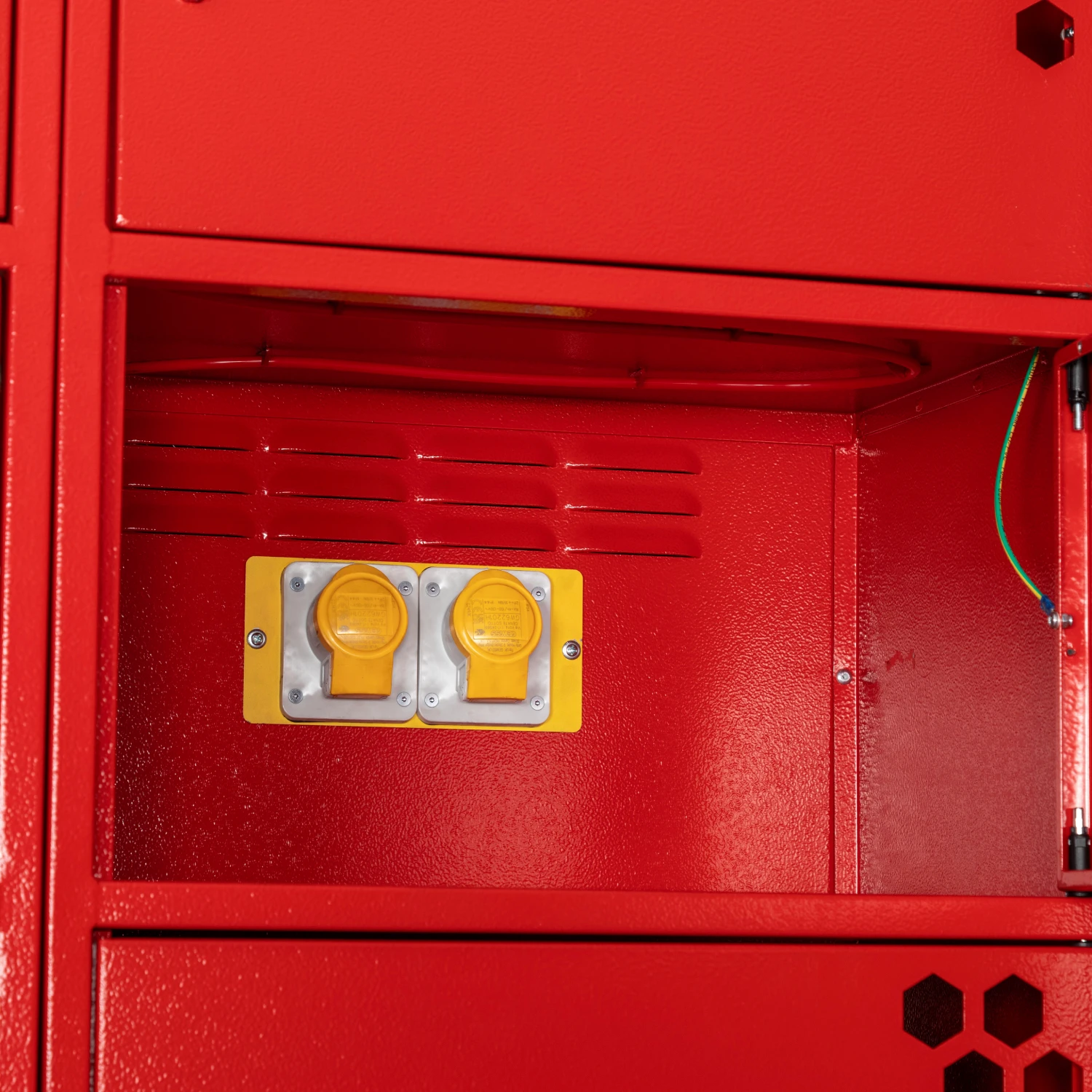

• Internal Sockets: Inside, the unit distributes this power to 32 individual sockets (two per locker) matching the voltage of the unit (either 32x 110V or 32x 240V). These sockets are individually RCD protected.

• Fire System Power: It’s also worth noting that the automatic fire suppression system is a pressurised, reactive system that works entirely independently and requires no power to operate.

Intelligent Fire Suppression Technology

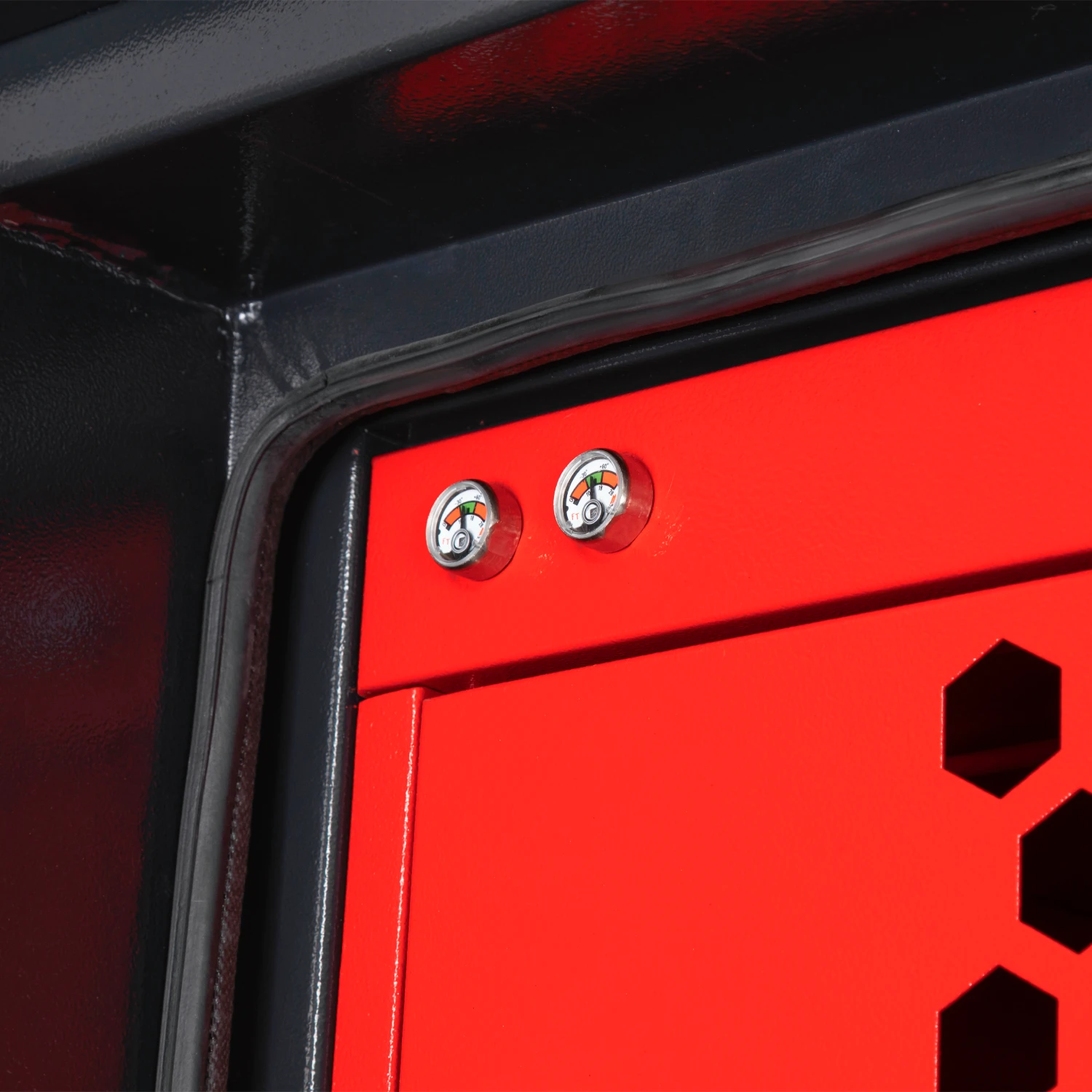

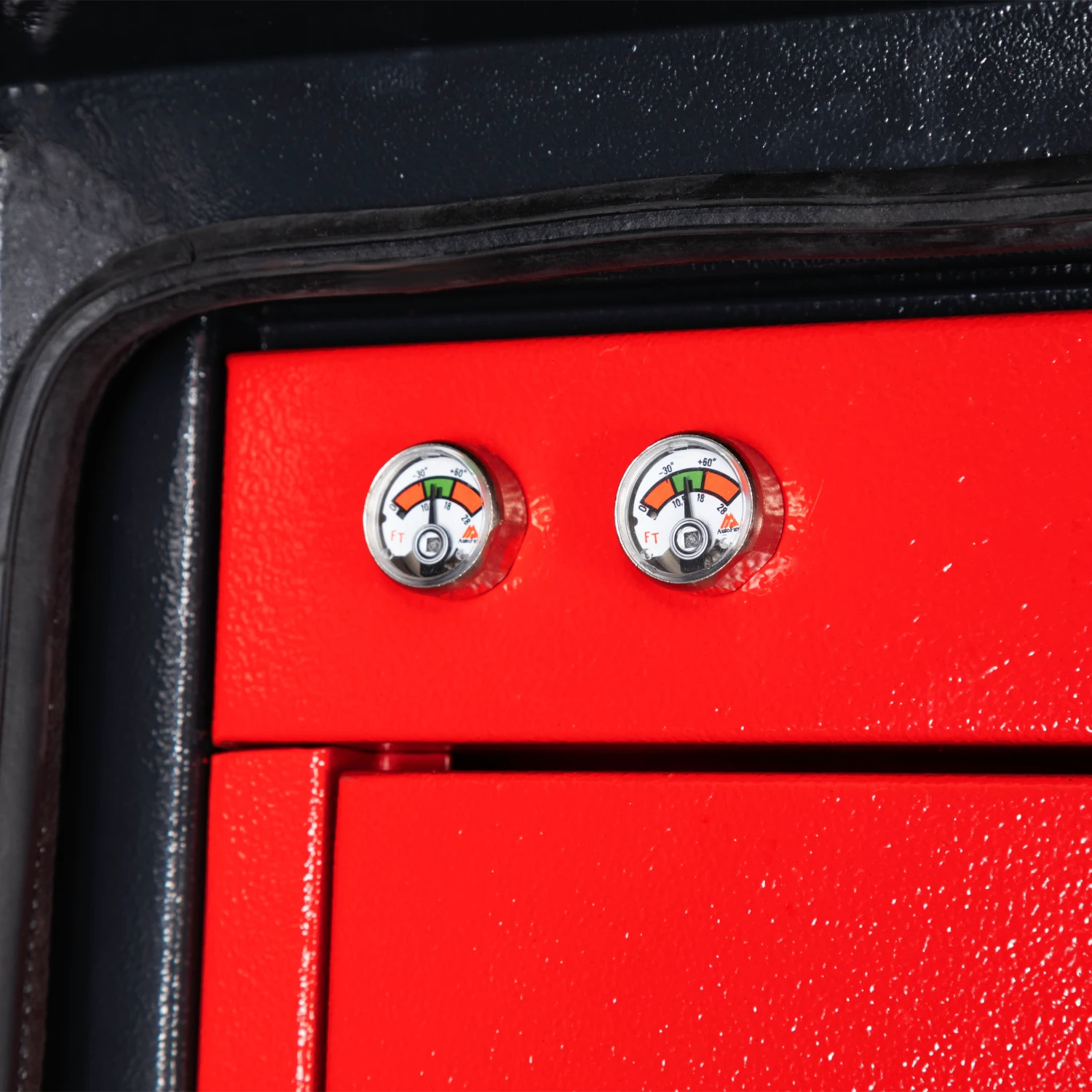

In the event of a faulty battery pack failing, thermal runaway requires immediate containment and cooling to prevent a wider catastrophe. The VoltHub integrates a sophisticated, automatic fire suppression system that is rigorously tested and certified specifically for lithium-ion battery fires. Operating entirely independently without the need for an external power source, this pressurised analogue system detects the exact source of a fire within its respective locker. It instantly deploys a specially formulated, PFAS-free foam that neutralises the chemical reaction and rapidly cools the battery. This targeted containment drastically reduces the risk of thermal propagation to adjacent battery packs. Should an incident occur, the system triggers visual and audible alarms, and can even alert site managers remotely via a GSM phone and text connection.

Climate Control & Safe Charging Environment

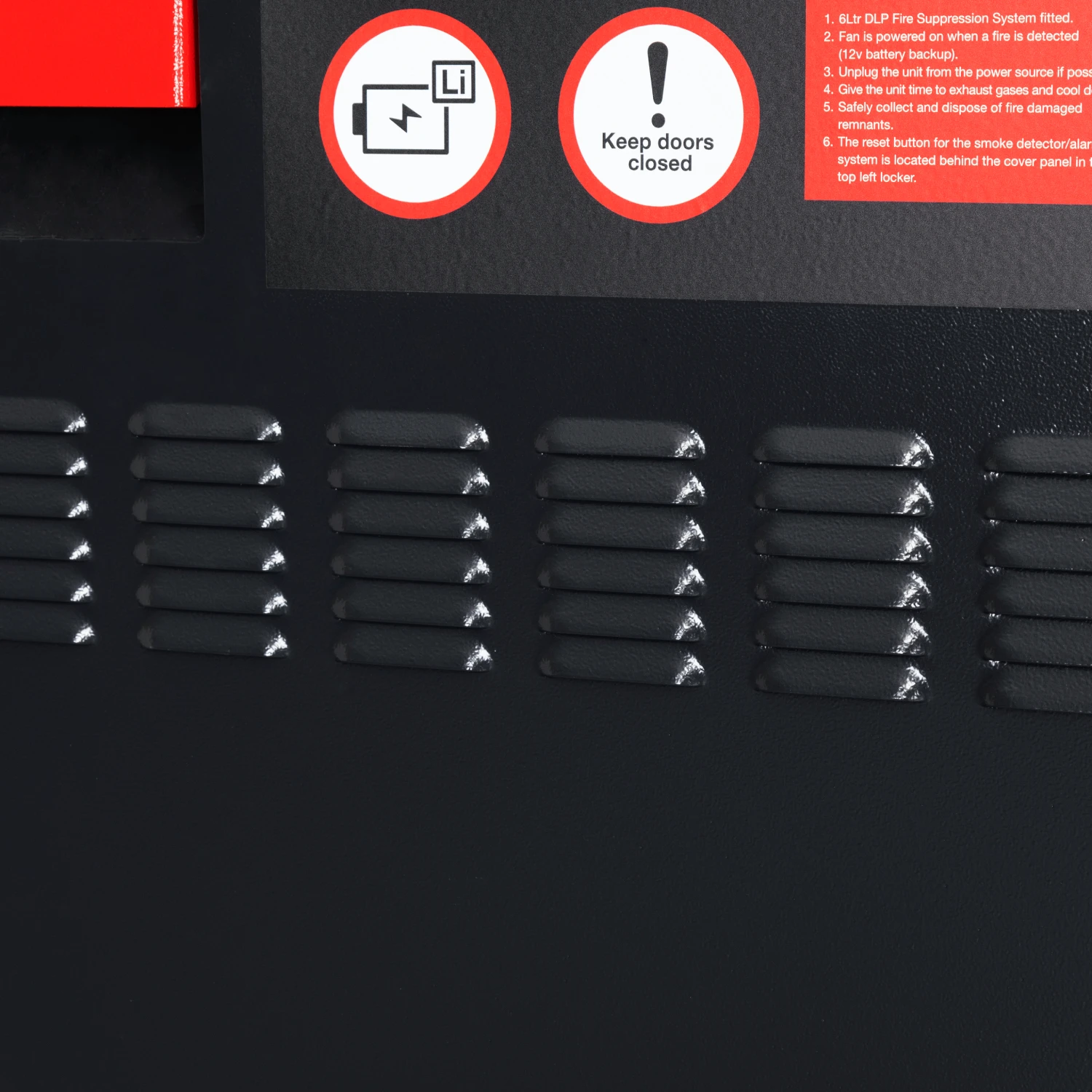

To proactively prevent electrical hazards before they start, the VoltHub utilises forced ventilation paired with automatic temperature management. Built-in humidity sensors activate internal fan and heater systems to ensure your batteries are always kept dry and in optimal charging conditions. If the internal environment ever reaches dangerous levels, an automatic power cut-off is triggered to instantly isolate the current and protect your highly valuable equipment.

Advanced Climate Control & Thermal Management

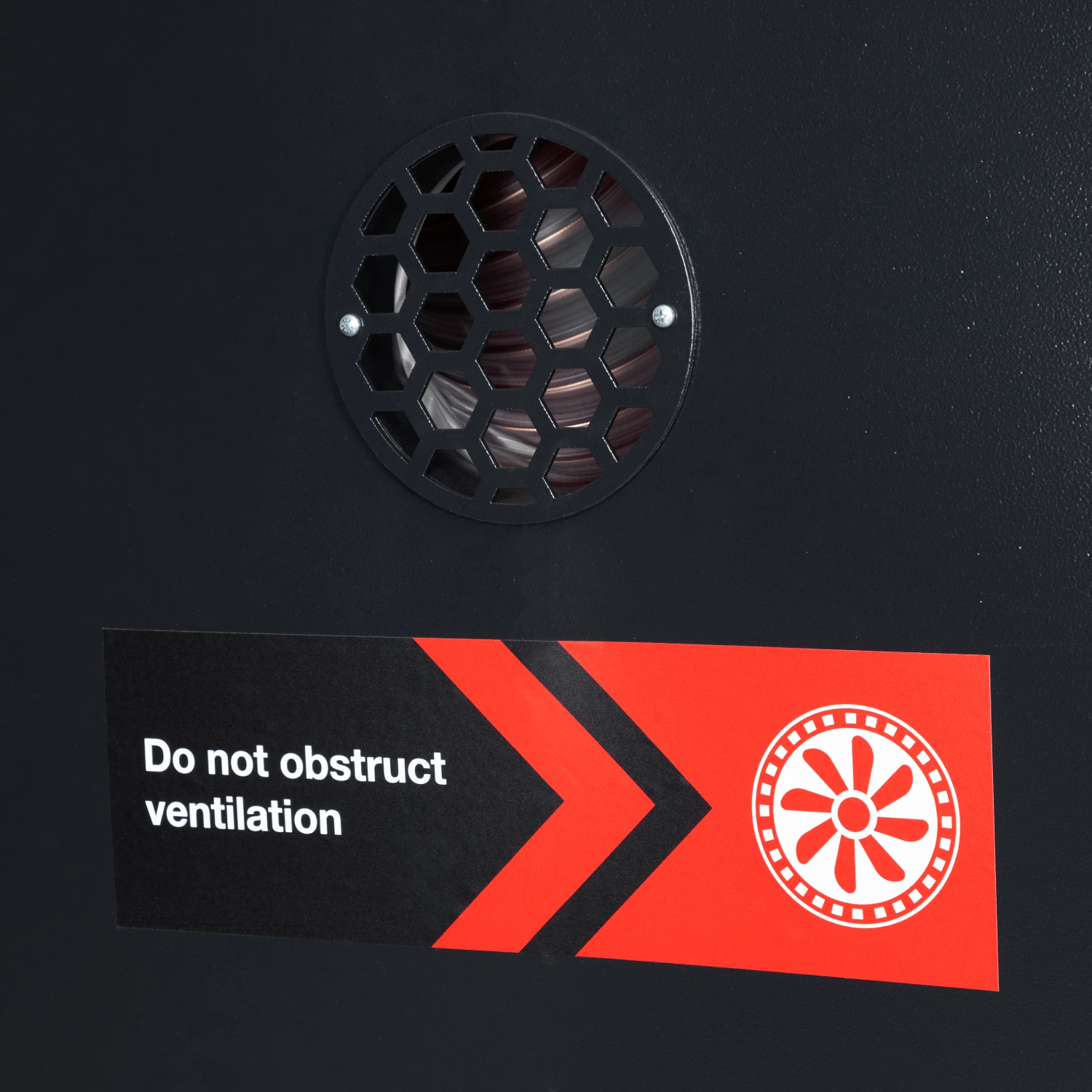

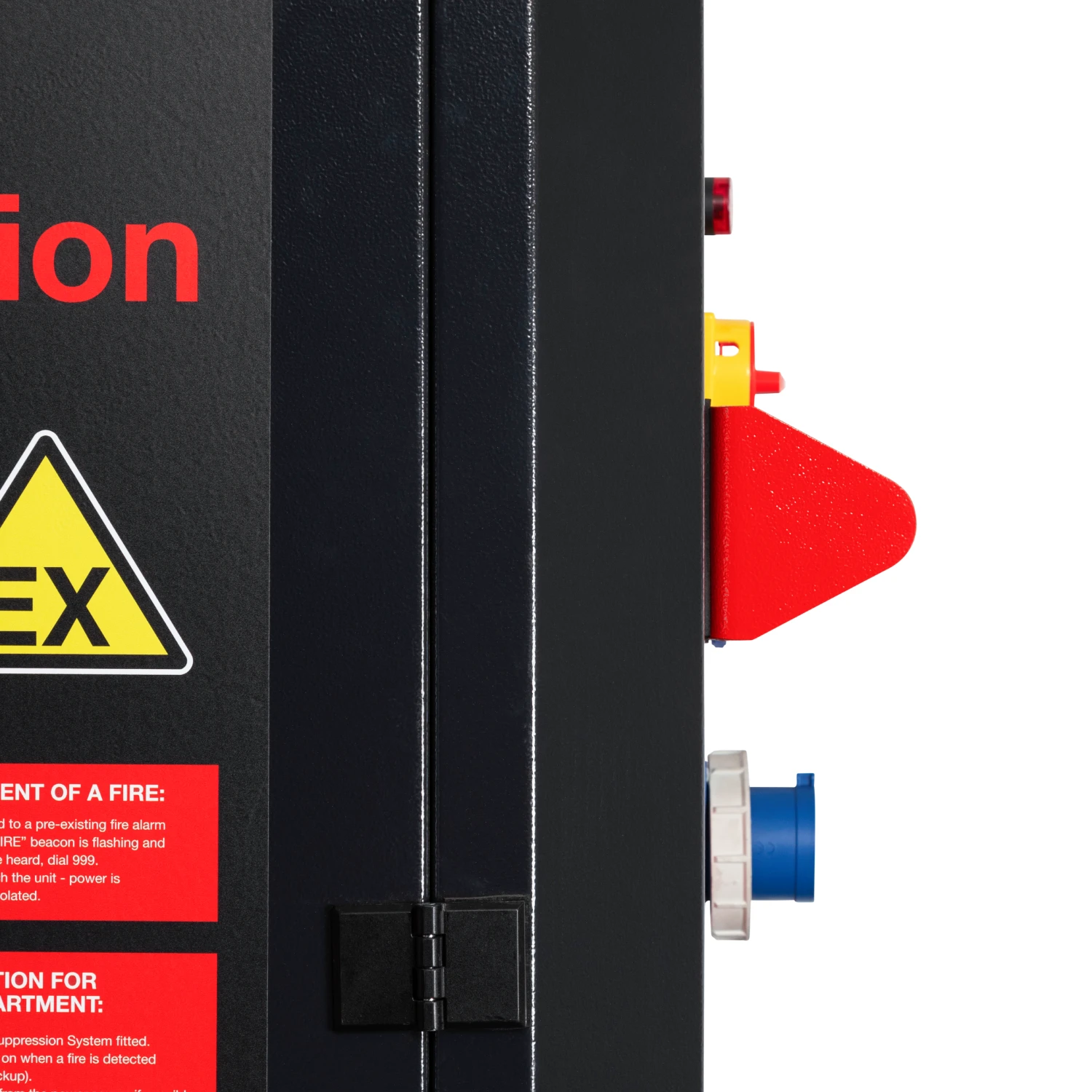

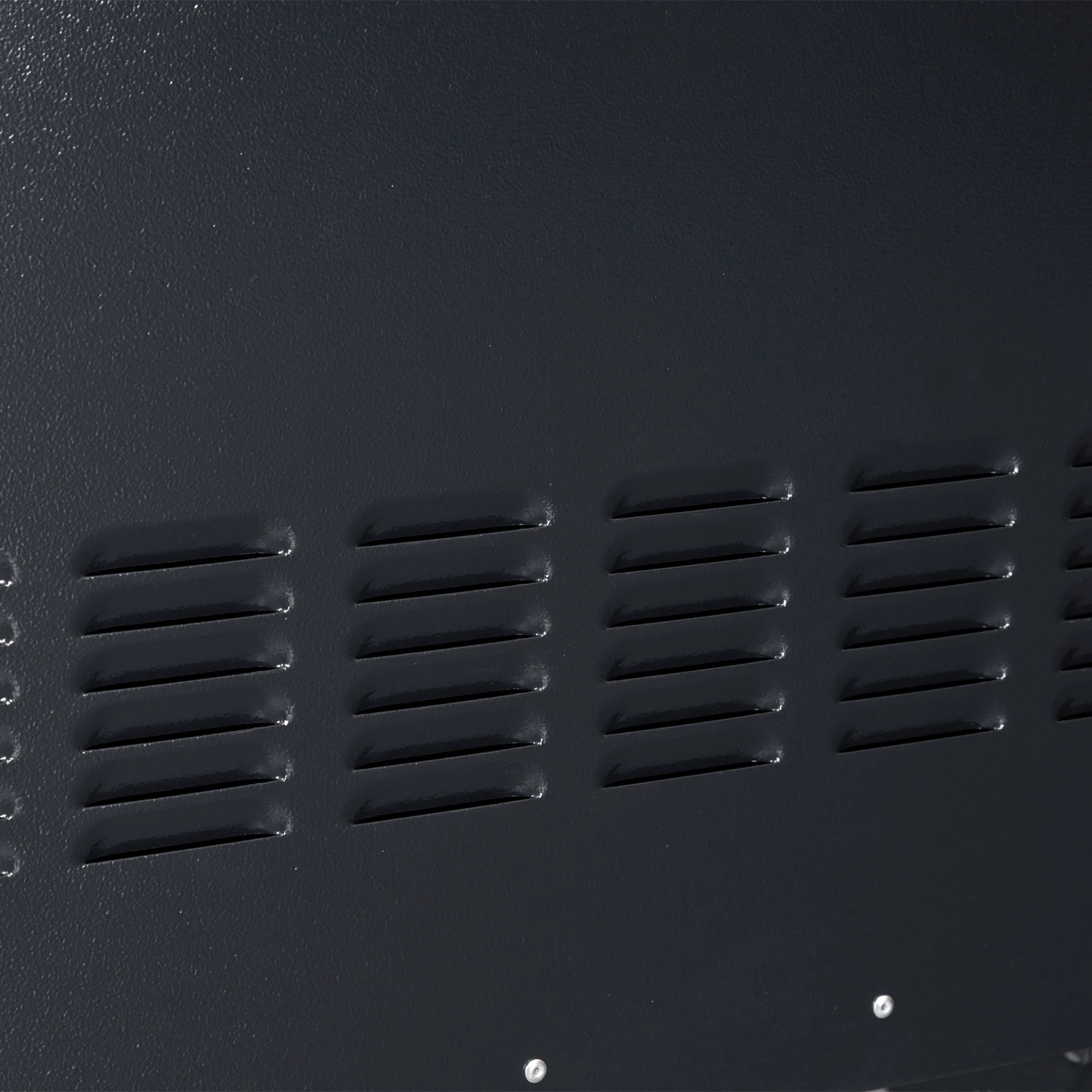

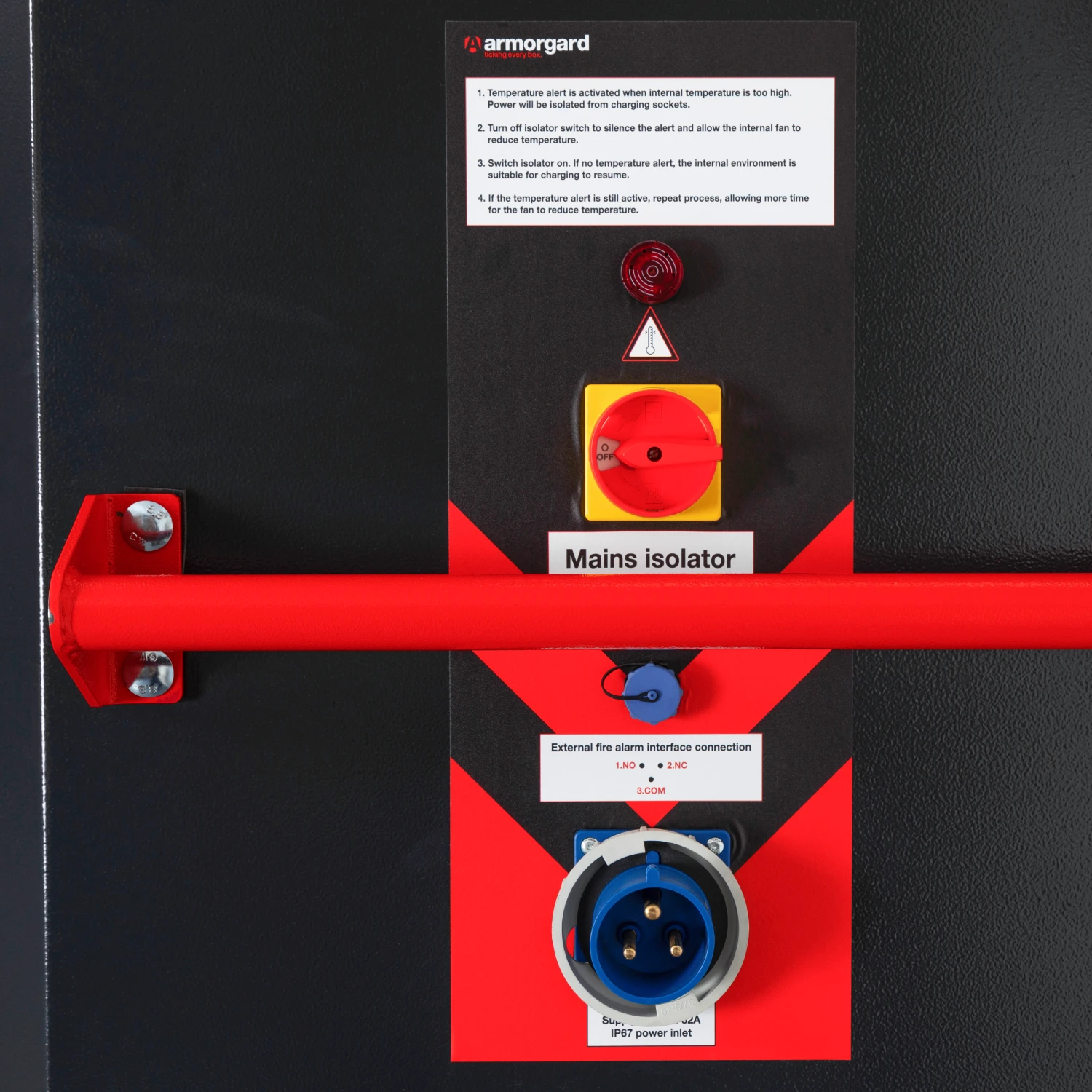

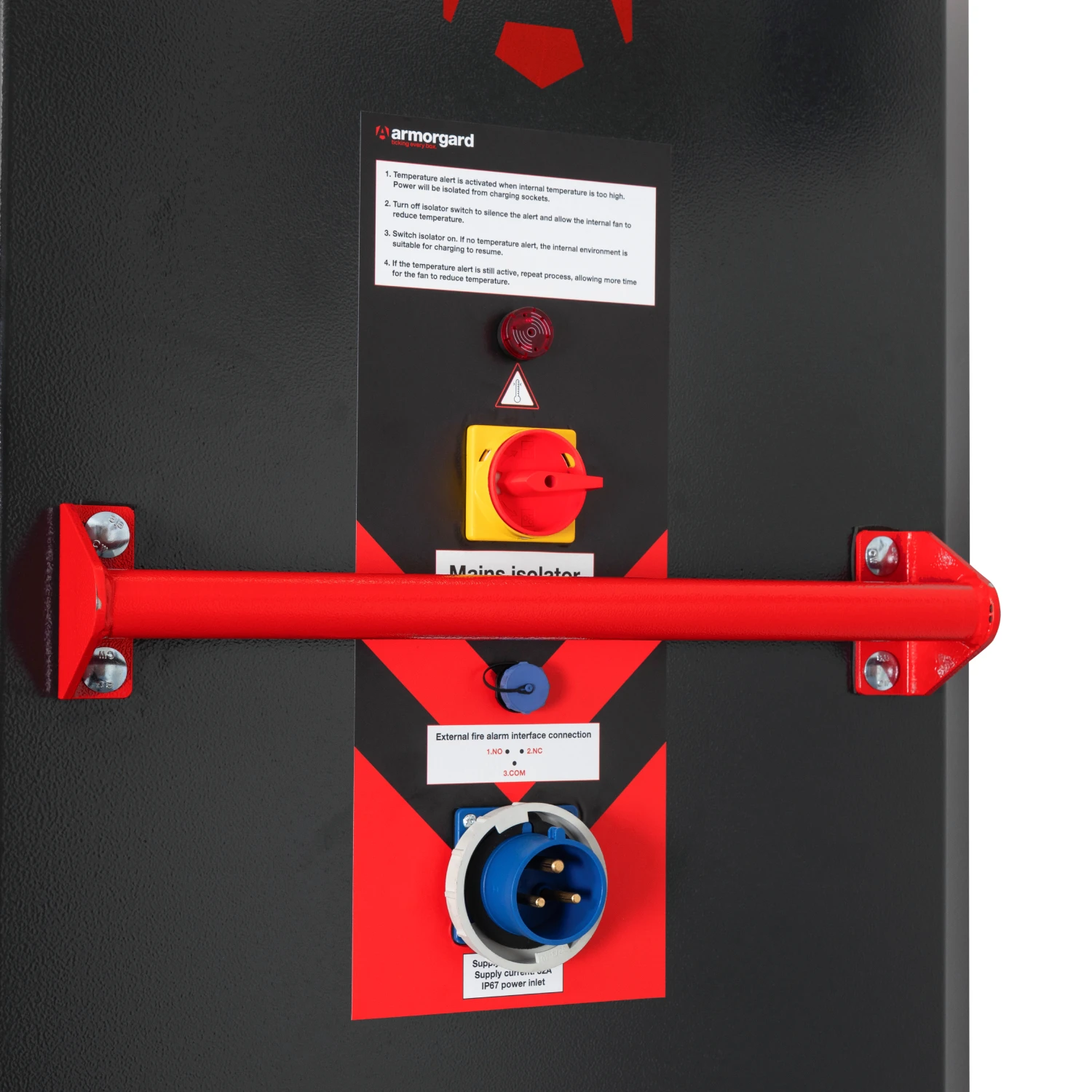

To ensure optimal battery health and proactively mitigate thermal risks, the Armorgard VoltHub is equipped with highly advanced internal climate control. Constant forced ventilation keeps air flowing consistently throughout the unit to dissipate heat , while a built-in humidity sensor and thermostatic heater work in tandem to keep the internal environment at optimum levels and ensure your batteries remain perfectly dry. Should the internal environment ever become unsafe, an automatic power cut-off is instantly triggered when the temperature reaches 60°C or more. Furthermore, an external isolator switch allows site managers to manually cut all power to the charging sockets whenever necessary.

Unrivalled Fire Detection & Site Integration

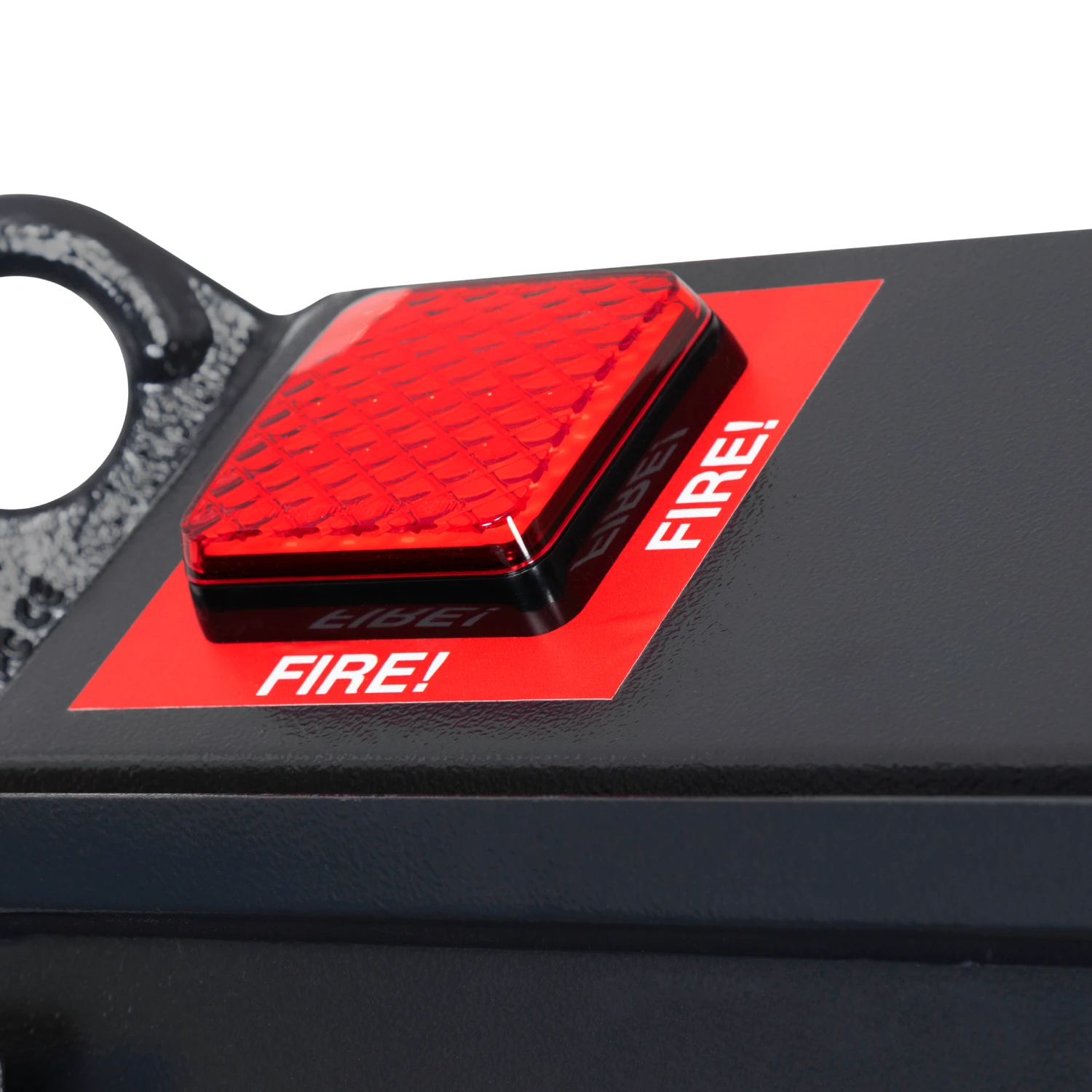

When it comes to emergency response, the VoltHub delivers an unparalleled early warning detection system for lithium-ion battery fires. If a thermal event occurs, the highly reactive fire suppression system deploys immediately to contain the hazard. Crucially, both the fire suppression and alert systems operate completely independently and will still function perfectly even without mains power. To keep your team instantly informed, the unit triggers a bright visual and loud audible alarm on-site , alongside an automatic GSM phone and text alert sent directly to key personnel. For total, centralised site safety, the VoltHub also features a universal communications port designed to integrate seamlessly into your existing site fire control system, offering full plug-and-play compatibility with WES, ProLink, Cygnus systems, and more.

Robust Security & Unrivalled Site Mobility

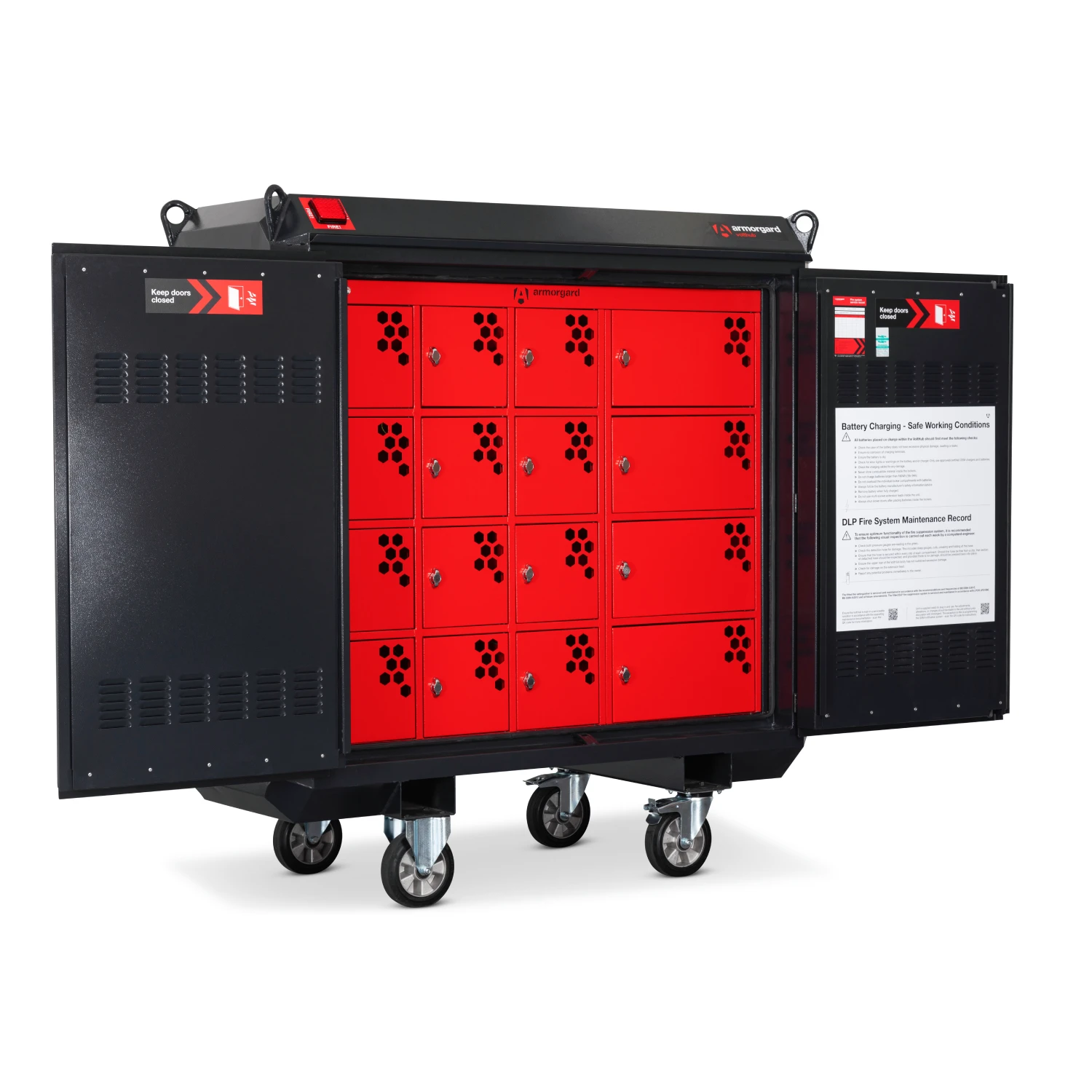

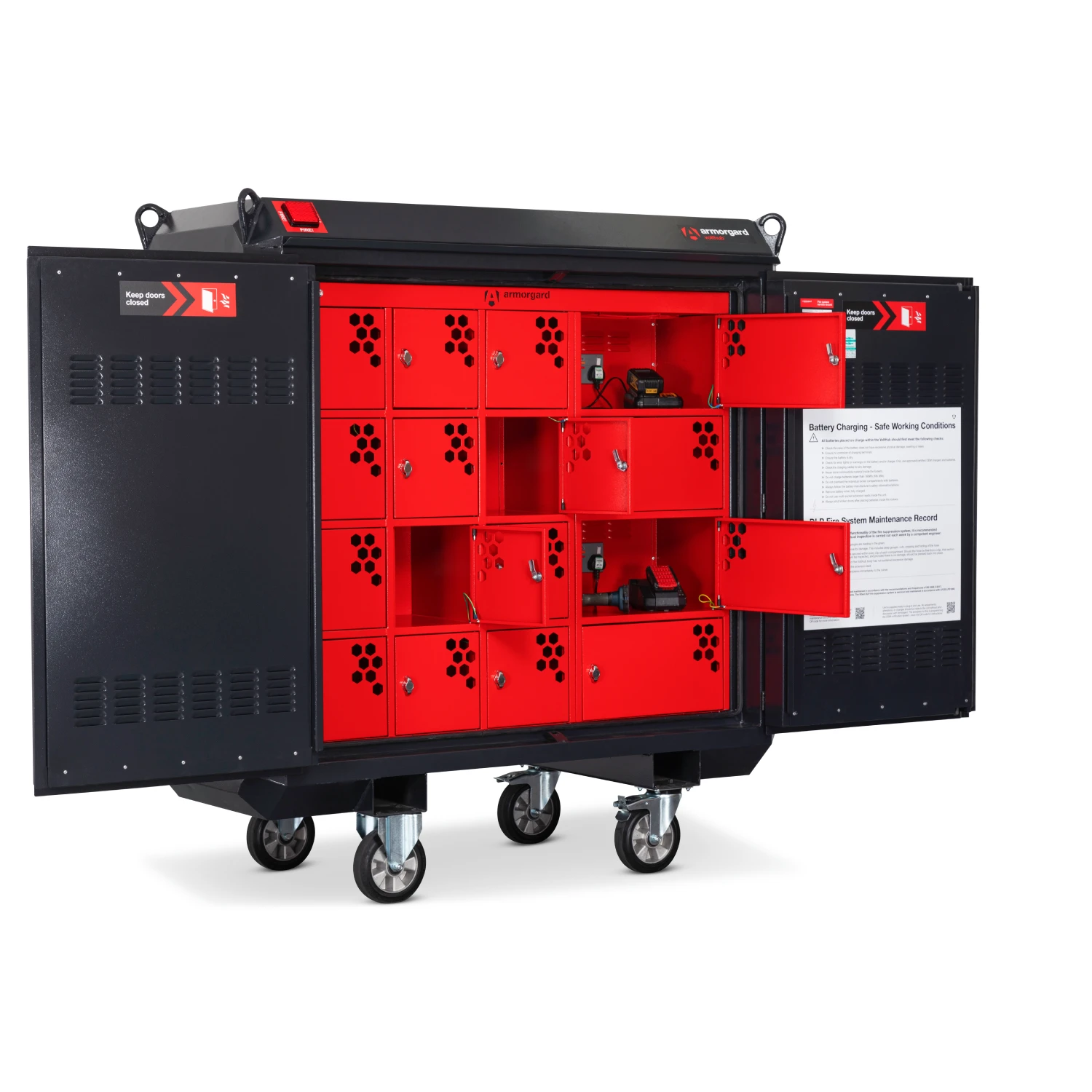

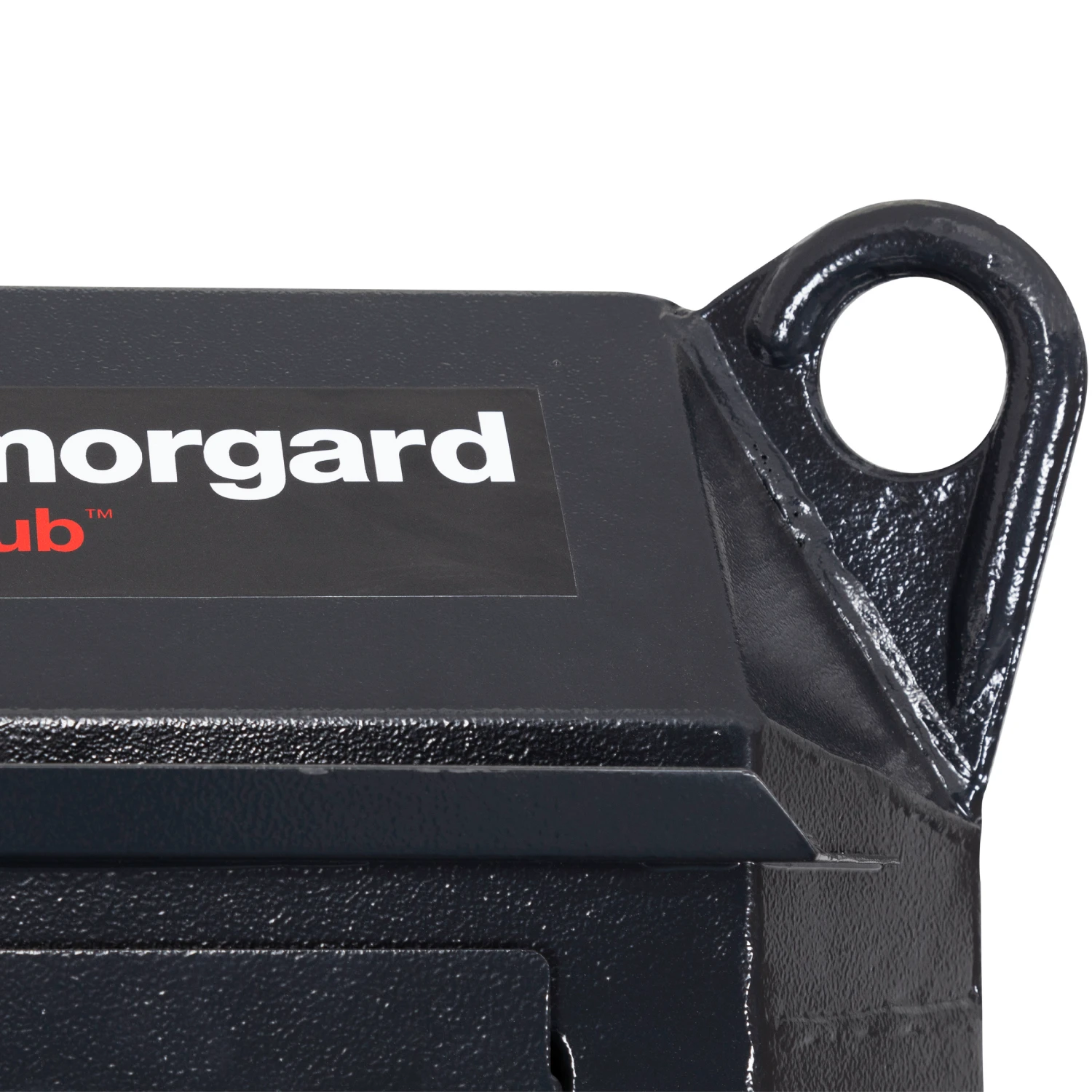

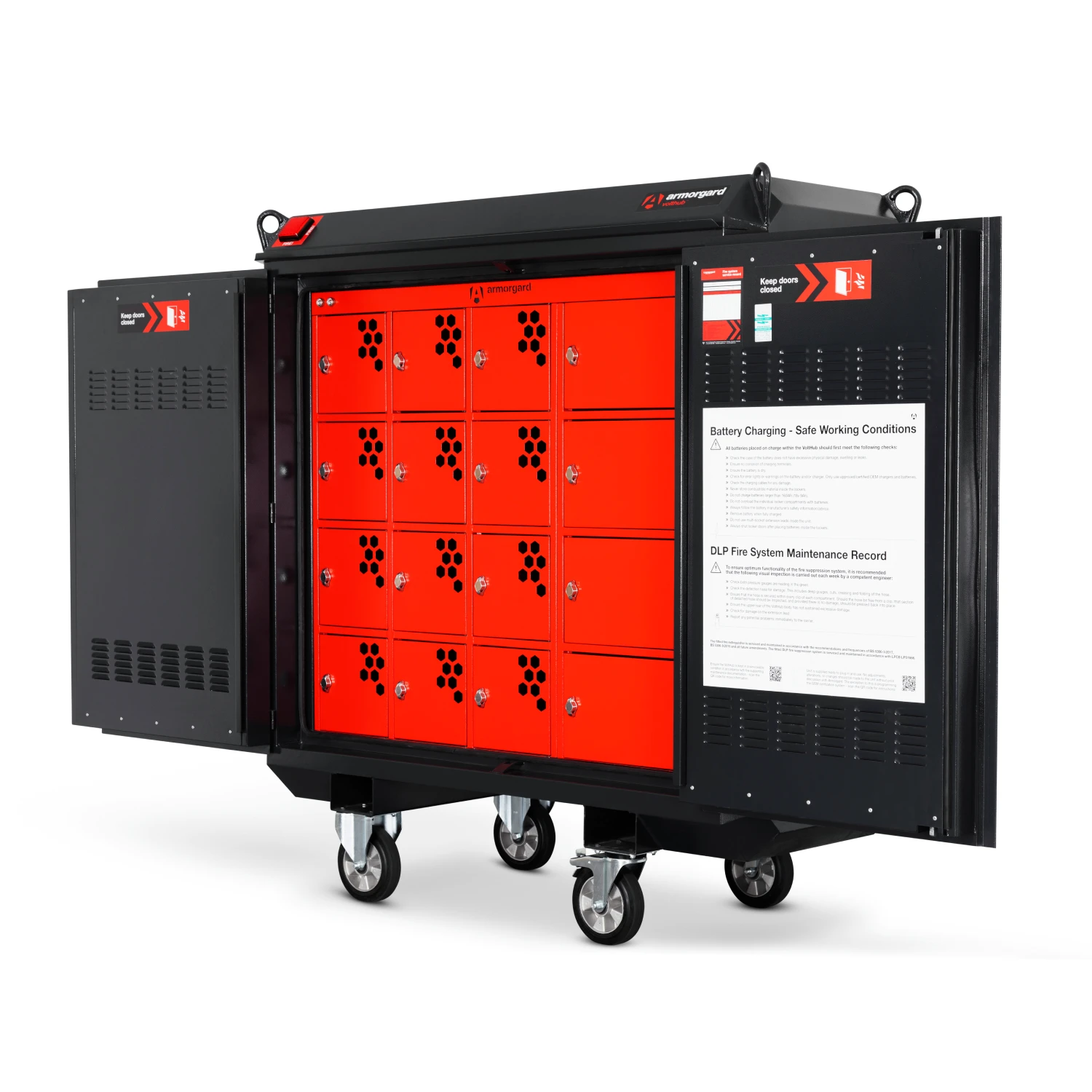

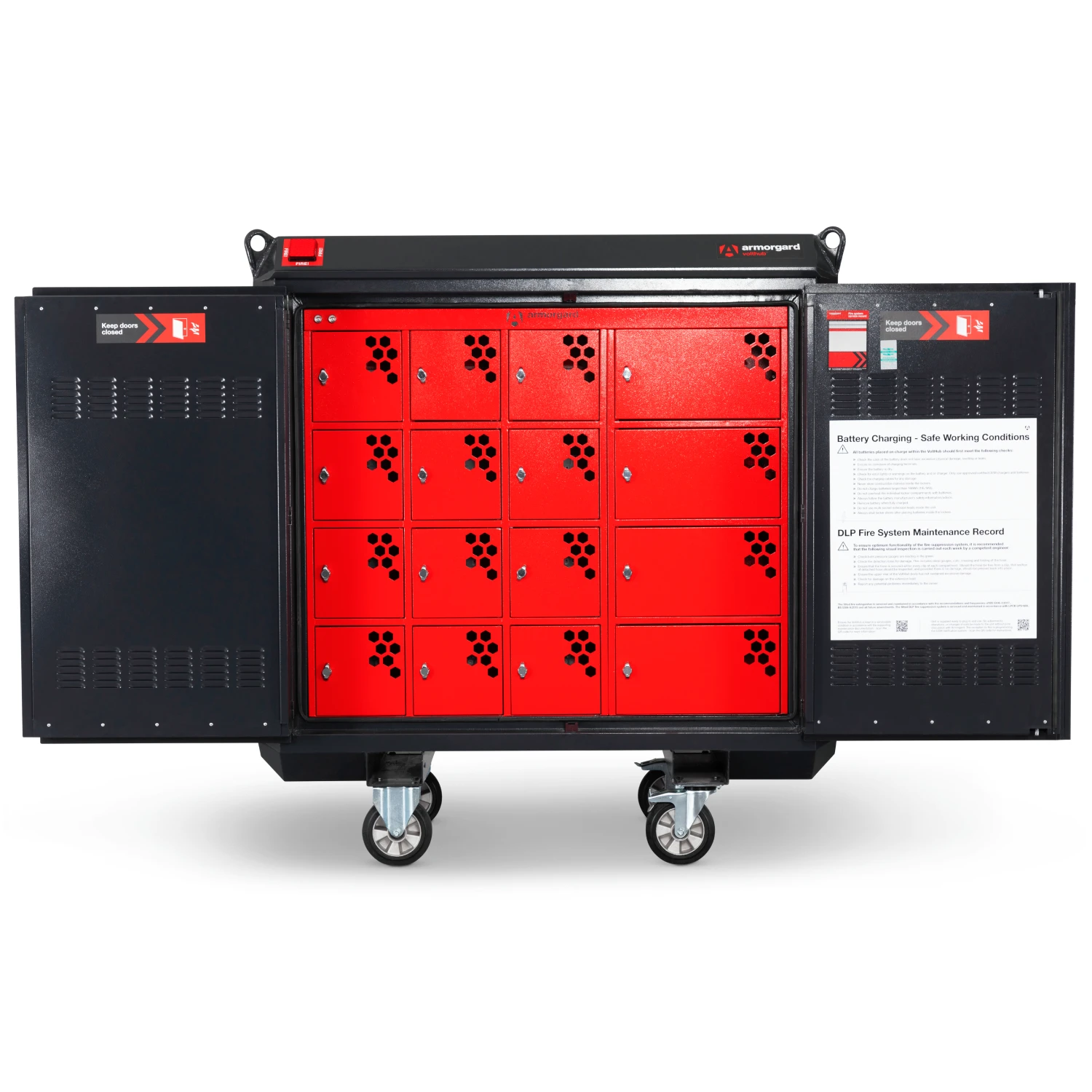

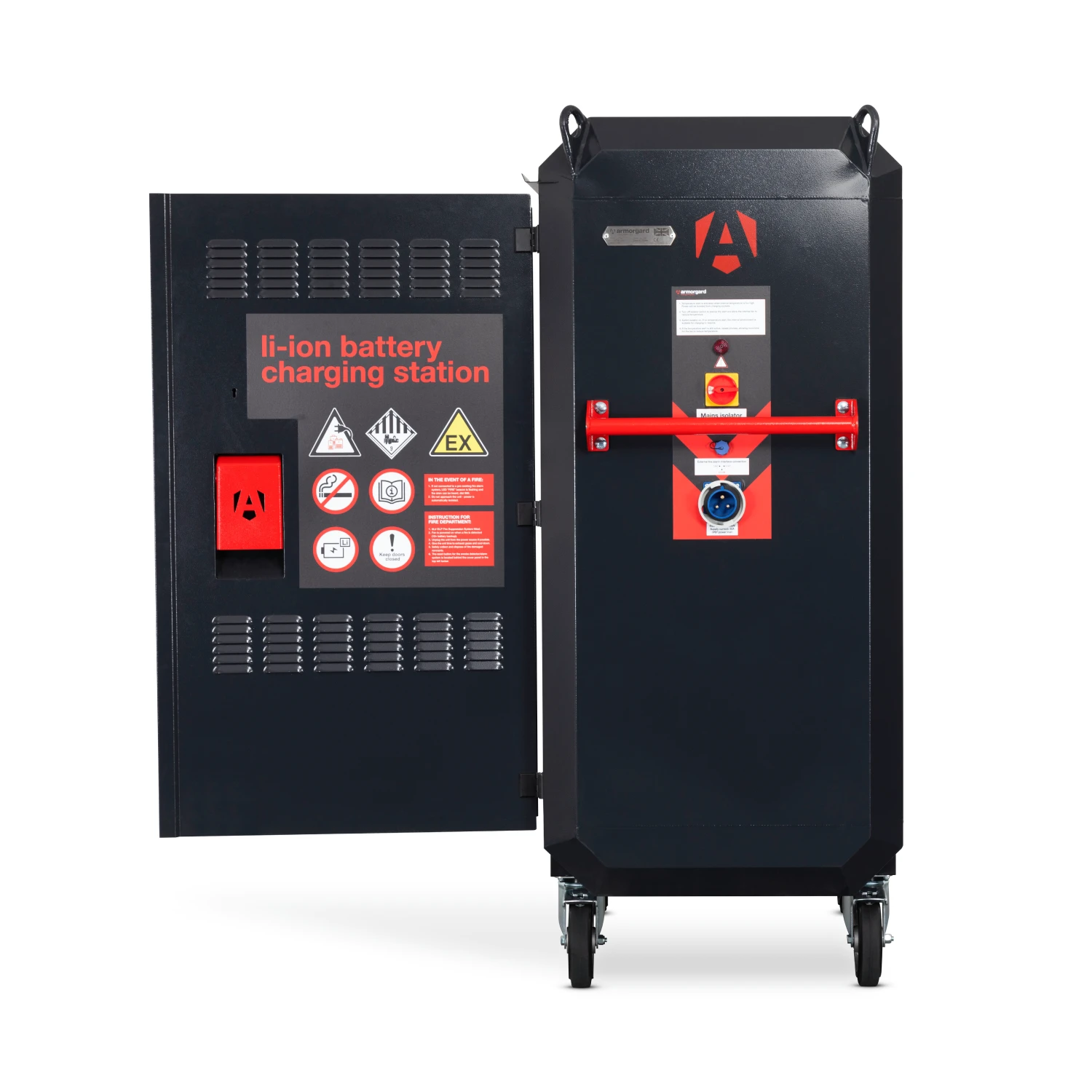

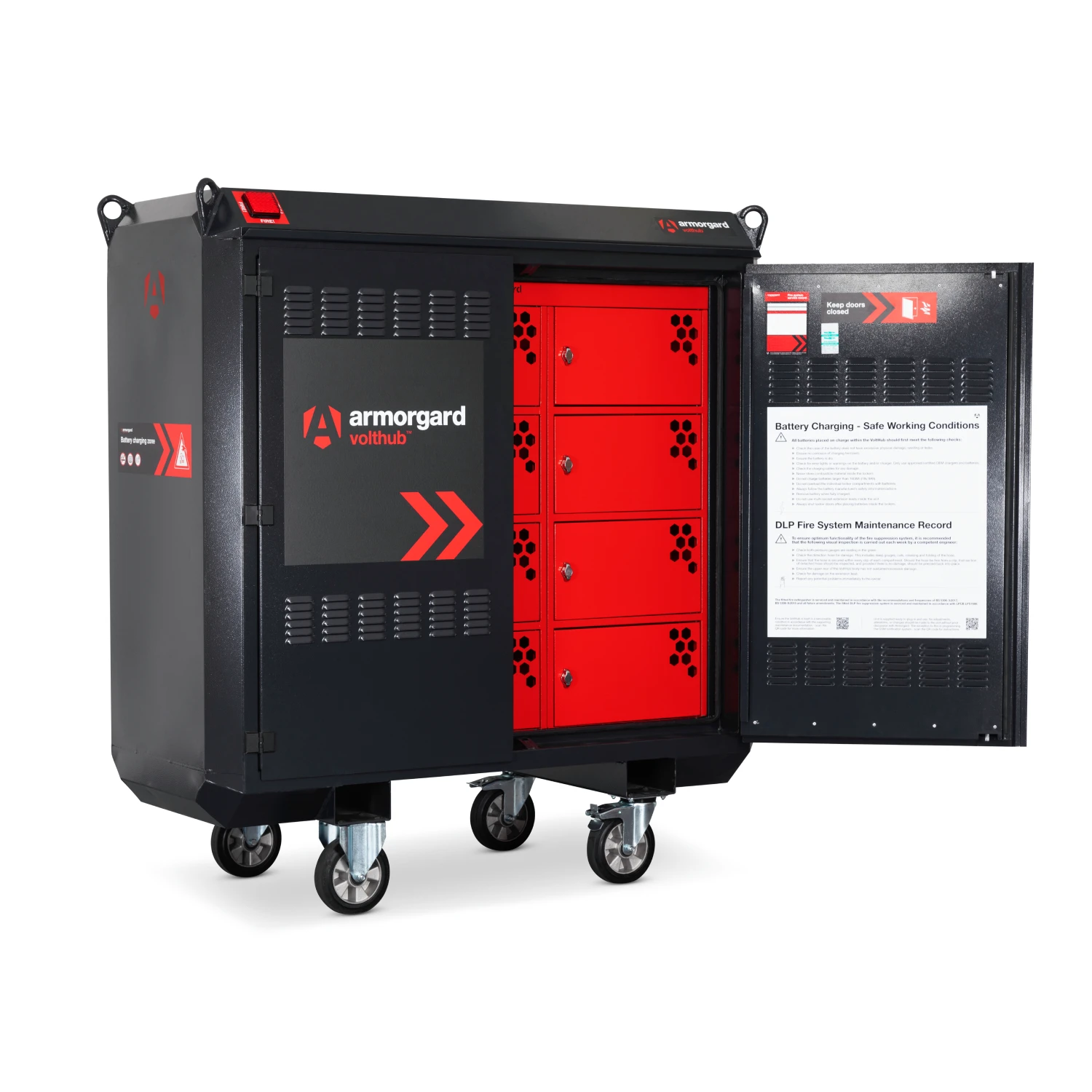

Engineered from heavy-duty 1.5mm powder-coated steel, this IP55 weatherproof charging station is built to withstand the harshest site environments. It features 16 individual, padlockable lockers, allowing different trades and contractors to secure their tools independently. Available in both 110V and 240V variations to suit your specific power requirements, the VoltHub provides a total of 32 RCD-protected power sockets (two per locker). Designed to fit seamlessly through standard doorways, the unit is exceptionally mobile; it comes fully equipped with 200mm heavy-duty castors, crane lifting eyes, and integrated forklift skids to ensure you can position it exactly where it is needed.

Key Specifications Summary

• Targeted Fire Safety: Features an integrated, automatic fire suppression system that deploys a certified, PFAS-free foam directly to the source of a Li-Ion battery fire.

• Secure Storage: Includes 16 individually padlock fitting lockers, each housing RCD-protected power sockets, ensuring safe and segregated charging for multiple users.

• Smart Climate Control: Equipped with forced ventilation, humidity sensors to keep batteries dry, and an automatic power cut-off to prevent overheating.

• Weatherproof Construction: Boasts an IP55 rating and 1.5mm steel construction, making it fully suitable for rigorous indoor and outdoor site usage.

• Exceptional Mobility: Designed with standard 200mm heavy-duty castors, integrated crane lifting eyes, and forklift skids for easy relocation around your site.
